Explorer ST Goliath 1200‑250 HPFP (Part No. H086‑2018)

Nostrum Performance presents the Explorer ST Goliath 1200‑250 HPFP, a high‑flow direct replacement fuel pump built to deliver unprecedented performance for the 3.0 L EcoBoost.

This Goliath fuel pump is engineered to outperform the stock HPFP with a 60% increase in flow—the largest pump available for the 3.0 EcoBoost platform. Constructed with fully stainless‑steel welded housing and vacuum‑brazed hard lines, it ensures leak‑proof, OEM‑fit durability and long‑term reliability. Designed for direct OEM SAE quick‑connect fittings, it simplifies installation and minimizes evaporative emissions. Tuning and install guides are included to support expert or DIY installs. Backed by a limited lifetime warranty, this pump offers maximum peace of mind.

Key Features

• 60 % greater flow than stock HPFP—supports over 750 WHP on E85

• Custom‑formed and vacuum‑brazed stainless‑steel hard line for OEM‑level fitment

• Fully stainless welded pump housing—zero risk of leaks

• OEM SAE quick‑connect fitting design with low EVAP compatibility

• Installation and tuning guides included; plug‑and‑play harness adapter

• Ethanol fuel compatible

• Limited lifetime warranty included for confidence and long‑term support

Benefits

• Dramatic fuel flow elevation unlocks high boost and torque earlier in the rev range

• Supports builds targeting beyond 750 WHP on E85 when paired with Stage 3 injectors

• Leak‑proof design ensures reliability under high‑pressure conditions

• OEM‑style fit helps retain vehicle integrity and fitment consistency

• Comprehensive support materials and tuning guides eliminate guesswork

• Lifetime warranty protects investment for the life of the product

Product Specifications

• Part Number: H086‑2018 (Explorer ST Goliath 1200‑250 HPFP)

• Flow Increase: Approximately 60% over factory HPFP

• Compatible Fuel: Gasoline and pump E85 (flex‑fuel compatible)

• Construction Material: Fully welded stainless steel for pump and hard line

• Fittings: OEM SAE quick‑connect; includes AN06‑>SAE QD and AN06‑>ORB adapters

• Color/Finish: Stainless steel natural finish

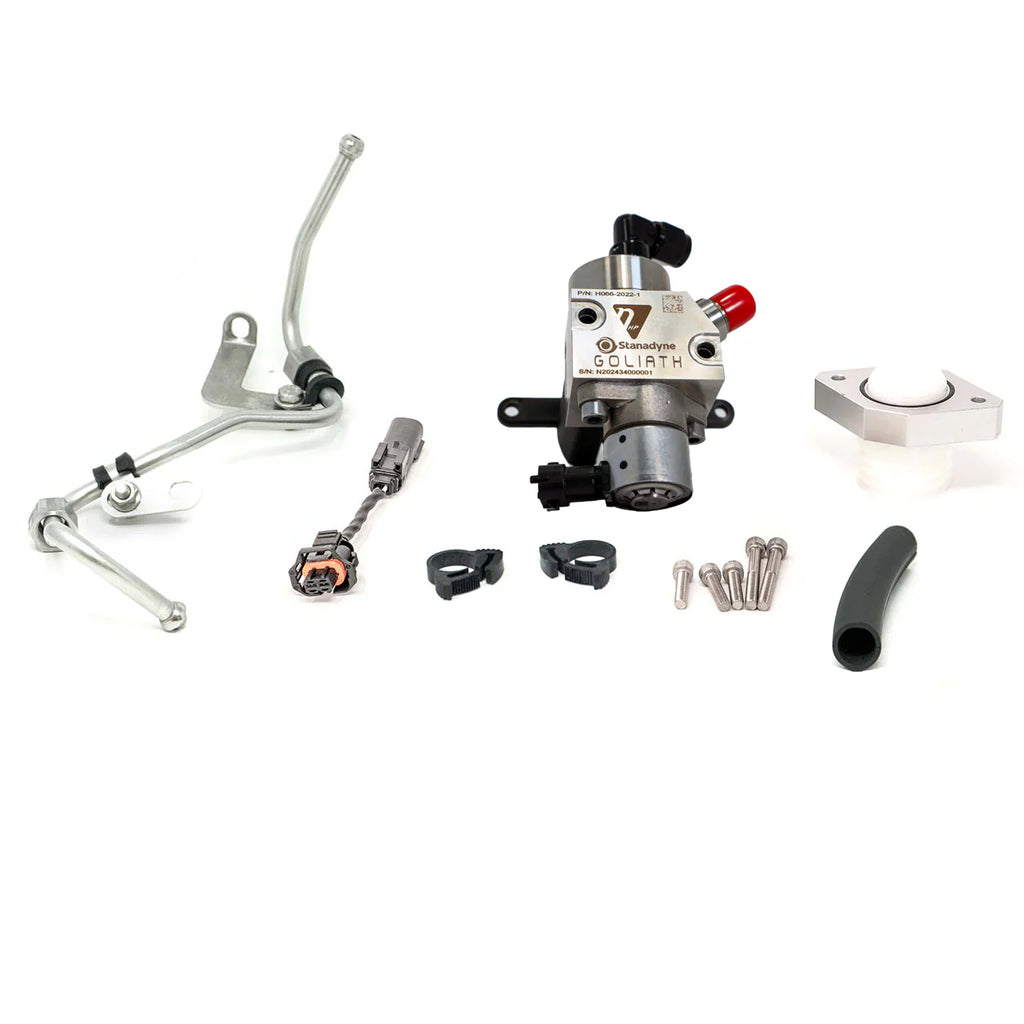

• Included Accessories: Pump flange, stainless hard lines with OEM fittings, wiring harness adapter, vibration damping sleeve with clips, warning cards, installation guide

Install Difficulty Level

Installation is considered straightforward and manageable for DIY enthusiasts. Real‑world forum examples report completing the install in approximately 4 hours from a driveway with standard tools. While access under the hood can be tight, the included detailed installation guide makes the process smooth and accessible.

Vehicle Fitment

Fits the following vehicles with 3.0 L EcoBoost engines: 2020–2024 Ford Explorer (ST and Platinum trims) and 2020–2024 Lincoln Aviator. Compatible with both stock and heavily modified builds.

CARB / EO Status

At this time, there is no publicly listed CARB EO number or EO ID available for this product. Therefore it is not certified for CARB compliance or legal for use in California or states adopting CARB certification standards.

Installation Guidance

Fits with stock or upgraded injector systems. For maximum performance, pairing with Stage 3 injectors in the Stage X bundle delivers up to 96% more fuel flow than stock injectors. Full tuning support is available through recommended tuners such as ZFG Racing or Livernois Motorsports. Always calibrate the engine management system following install to verify safe operating parameters.

Need Clarification?

For questions about this product or to report any inaccuracies in this description, contact the MPT Performance experts at (407) 636‑7077 or via email.
